Process Equipment Catalog
A complete line of pilot plant and small commercial equipment for the mineral, chemical, industrial, and waste treatment industries. All equipment available in corrosion-resistant materials.
Grinding Mills
Ball, rod, and pebble mills for primary or regrind circuits. Wet or dry, open or closed circuit. Bench scale through package modules.

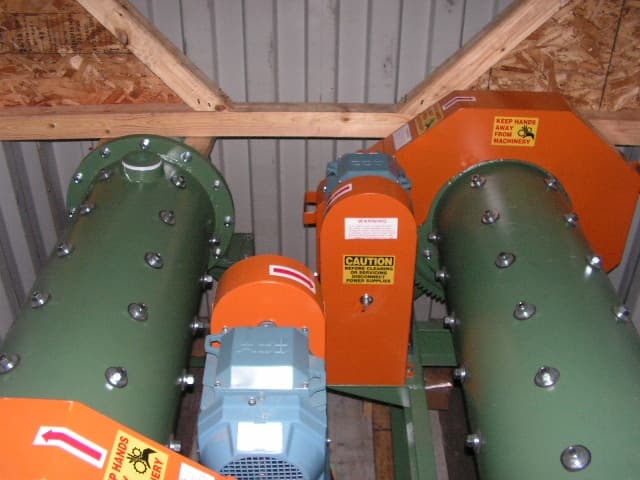

- Ball/Rod Mills (M-001)
- Sectionalized Ball/Rod Mill (M-002)
- Bond Index Grinding Unit (M-003)
- Bench Scale Mills (GM-001)
- Batch Grinding Module (GM-004)
- Package Grinding Module (GM-005)
- Closed Circuit Grinding Module (GM-006)
Materials Handling
Belt feeders, conveyors, and bucket elevators for pilot plant and small commercial operations.
- Belt Feeders (BF-001)
- Belt Conveyors (C-002)
- Bucket Elevators (E-005)
Agitators & Conditioners
Propeller, paddle, and multi-stage agitators for leaching, dissolution, reagent conditioning, and storage.
- Propeller Agitators (A-001)
- Paddle Agitators (A-002)
- Multi-Stage Propeller Agitators (A-003)
- Reducer Driven Agitators (A-004)
- Drum Conditioner (DC-001)
Pumps
Diaphragm metering pumps and vertical centrifugal sand pumps for abrasive and frothy slurries.

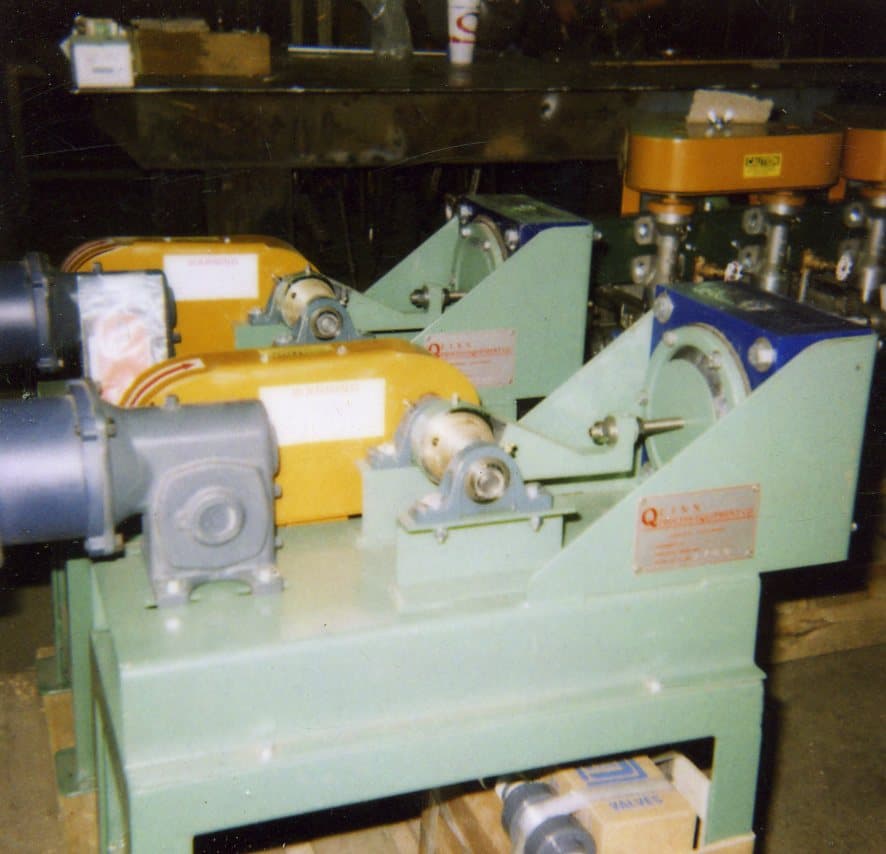

- Diaphragm Pumps (P-001)

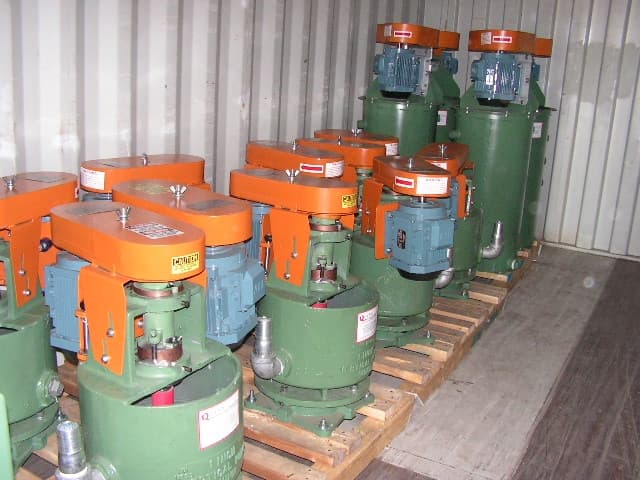

- Vertical Sand Pumps (P-003)
Thickeners & Filters
Thickeners/clarifiers for dewatering and solids removal. Pan vacuum filters and laboratory pressure filters.

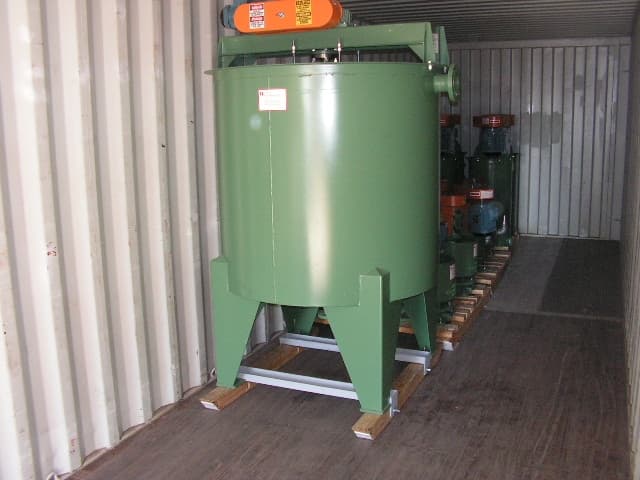

- Thickeners/Clarifiers (T-001)
- Pan Vacuum Filters (PVF-001)
- Lab Pressure Filters (PF-001)
Scrubbers & Classifiers
Attrition scrubbers, trommel scrubbers, and spiral classifiers for size classification, washing, and desliming.

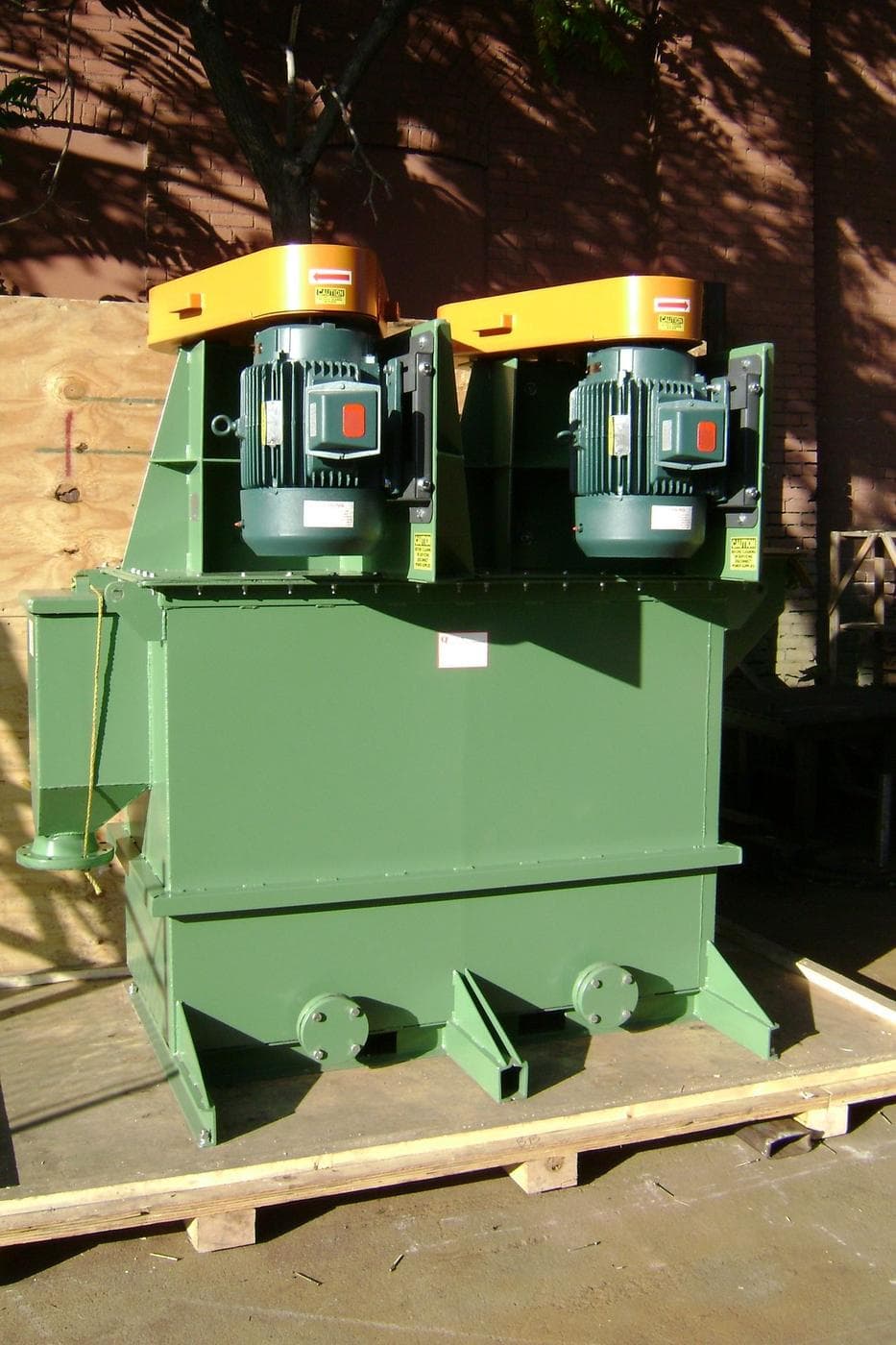

- Attrition Scrubbers — Small (AS-001)
- Attrition Scrubbers — Large (AS-002)
- Trommel Scrubbers (TS-001)

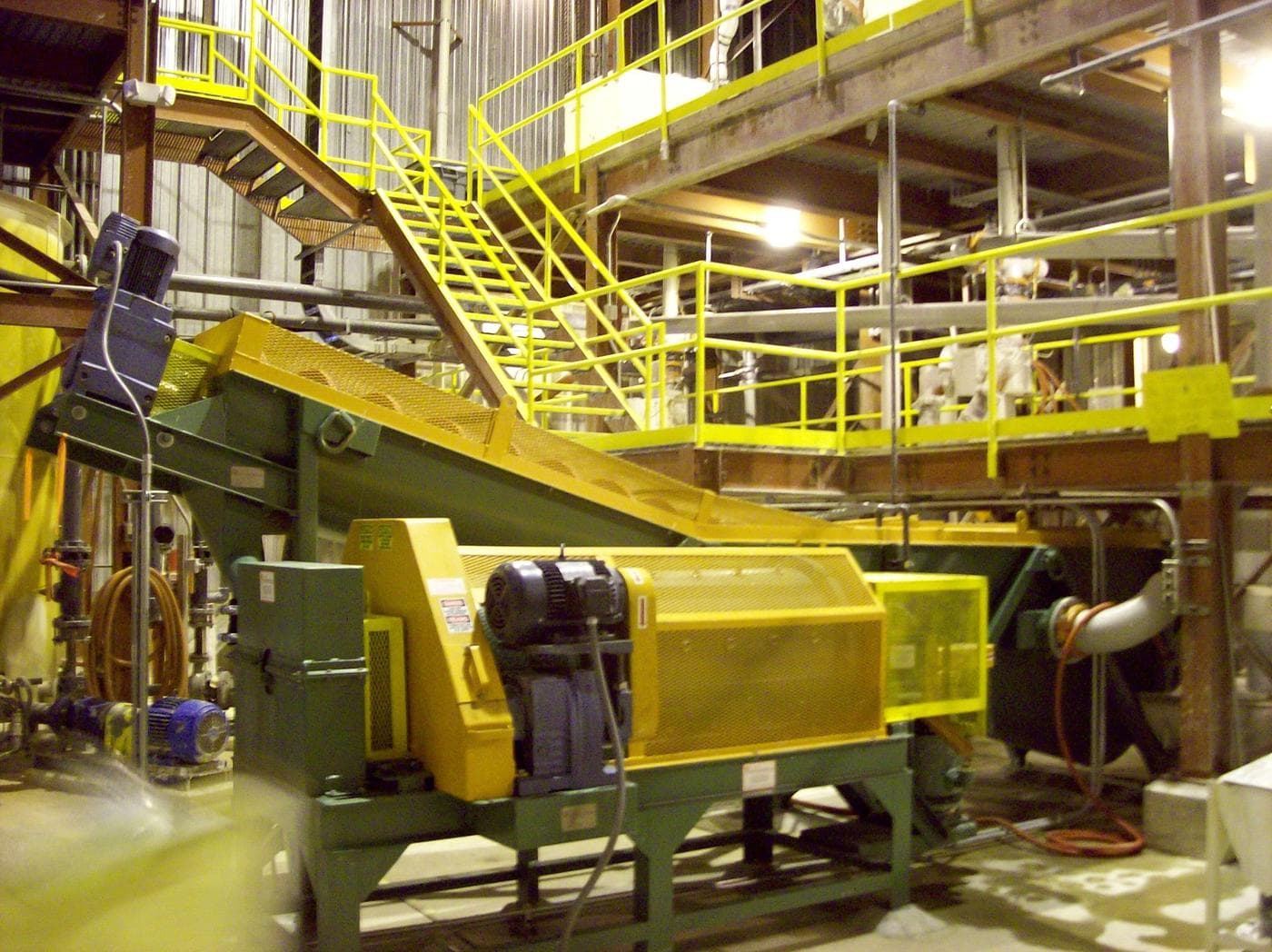

- Spiral Classifier (C-001)
Crushing & Sampling
Laboratory crushing rolls, dry and slurry samplers, and Snyder-type samplers for size reduction and representative sampling.
- Dual Crushing Rolls (CR-001)
- Dry/Slurry Sampler-Splitter (SS-001)
- Snyder Type Sampler (S-001)
Gravity Separation
Selective mineral jigs, placer test units, batch amalgamation, and strake belt concentrators for heavy mineral recovery.
- Selective Mineral Jig (J-001)

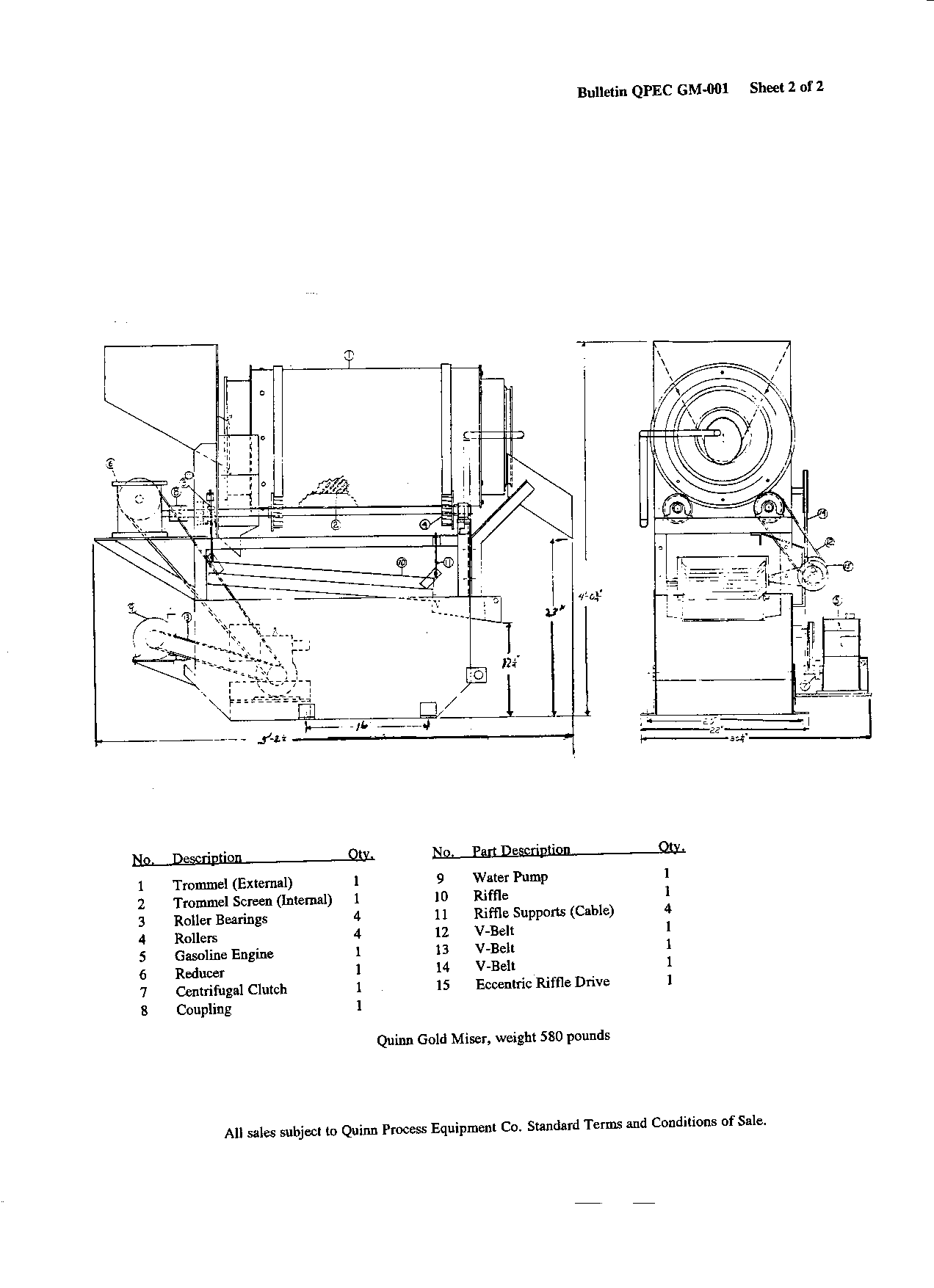

- Placer Test Unit — Gold Miser (GM-002)
- Batch Amalgamation Unit (BA-001)
- Strake Belt Concentrator (ST-001)
Thermal Processing
Fluid bed reactors and bench rotary kilns for calcination, incineration, and controlled roasting.
- Fluid Bed Reactor (FBR-001)

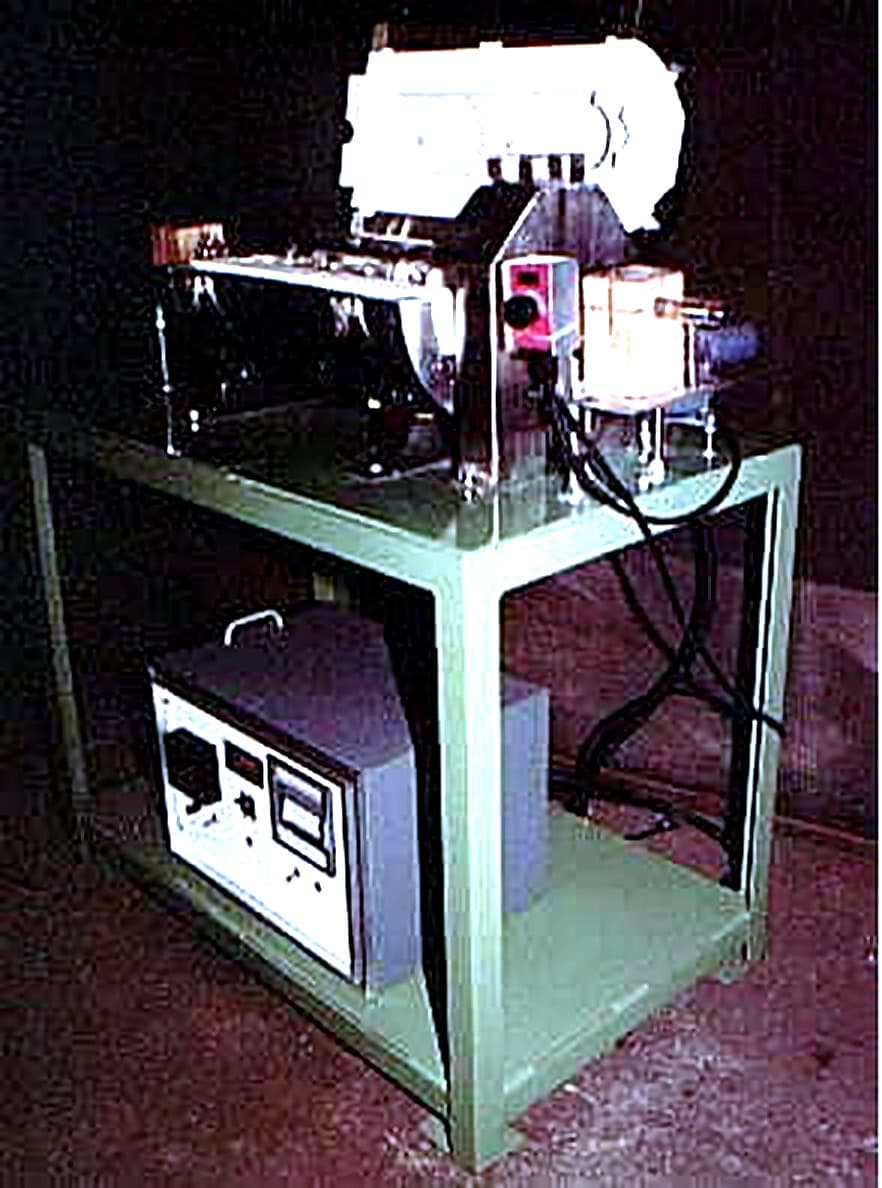

- Bench Rotary Kiln (K-001)
Custom Equipment
Custom-designed and fabricated process equipment including skid-mounted plants, truck-mounted units, hydroclassifiers, screw conveyors, and equipment rebuilds.
- Skid-Mounted Modular Plants
- Truck-Mounted Units
- Hydroclassifiers
- Screw Conveyors
- Equipment Rebuild & Modernization
All equipment is designed for 24-hour continuous duty in abrasive and corrosive service conditions. Available in mild steel, stainless steel, FRP, rubber, neoprene, and other corrosion-resistant materials. OSHA-type guards standard on all drives. Most units shipped completely assembled.
Need Something Specific?
We design and manufacture custom process equipment to your exact specifications. Contact us with your requirements.
