Mixer-Settler Systems for Every Scale
No Interstage Pumps. No Unnecessary Complexity. Just SX That Works.
From laboratory pilot units to full commercial operations, our mixer-settler systems are tailored to meet the unique needs of your project.
Key Design Advantage
QPEC mixer-settlers utilize impellers in the mix tanks specifically engineered to both advance (pump) and thoroughly mix the incoming feed streams — aqueous, organic, and recycle — at the mixer eye.
This eliminates the need for interstage pumps, significantly simplifying system control and operation. Only external feed pumps (for aqueous and organic feeds) and their associated tanks, flowmeters, and valves are required.
All QPEC mixer-settlers are designed with equal liquid levels in both the mixer and settler, allowing for straightforward startup and shutdown with no need for surge tanks to handle backflow.
Configurations
Simplex, Duplex & Triplex
Simplex
Single mixer-settler unit. Ideal for straightforward extraction circuits and pilot testing.
- Single mixing stage
- Compact footprint
- Easy operation
Duplex
Dual mixer configuration for enhanced mixing and increased throughput in production environments.
- Two mixing stages
- Higher throughput
- Improved extraction efficiency
Triplex
Triple mixer arrangement with auxiliary axial flow mixers for maximum performance in demanding applications.
- Three mixing stages
- Auxiliary axial flow mixers
- Maximum extraction performance
Capacity
Specifications at a Glance
Materials
Construction Materials
Units can be constructed from a wide variety of materials to suit specific applications and process chemistry requirements.
- Fiberglass Reinforced Plastic (FRP)
- 316L Stainless Steel
- Duplex Stainless Steel
- CPVC
- PVDF
- PVC
- Polypropylene
- Carbon Steel (lined)
- PETG (3D printed pilot plant models)
- Custom alloys per application
In the Field
Our Systems at Work

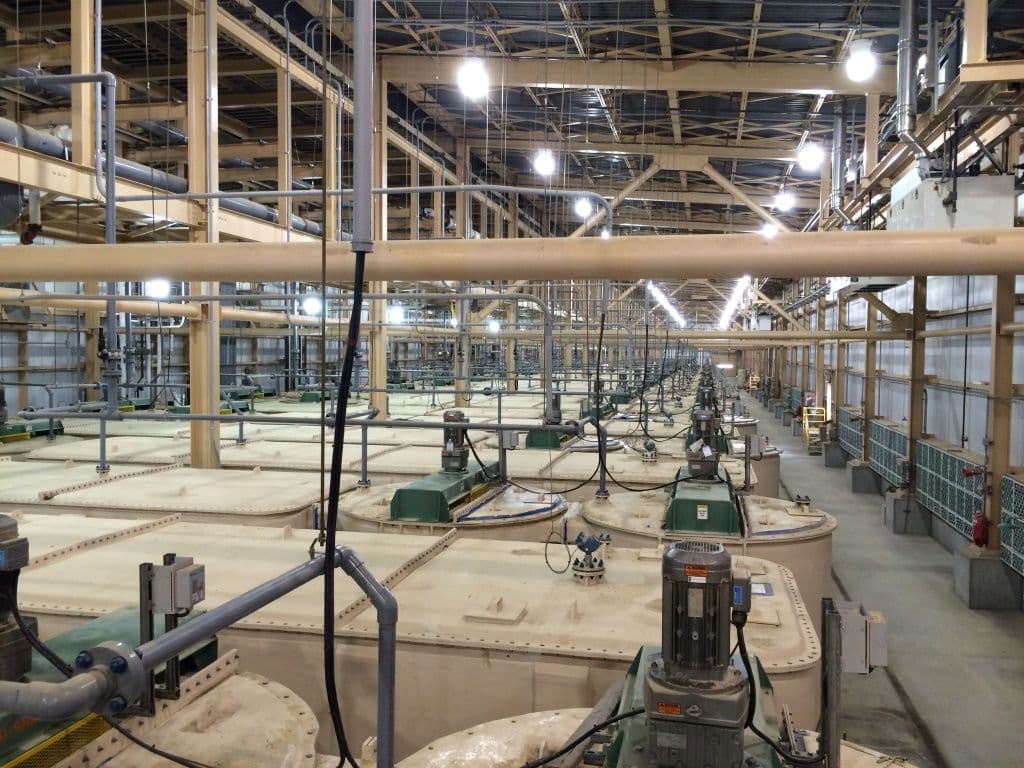

Commercial SX Plant Interior

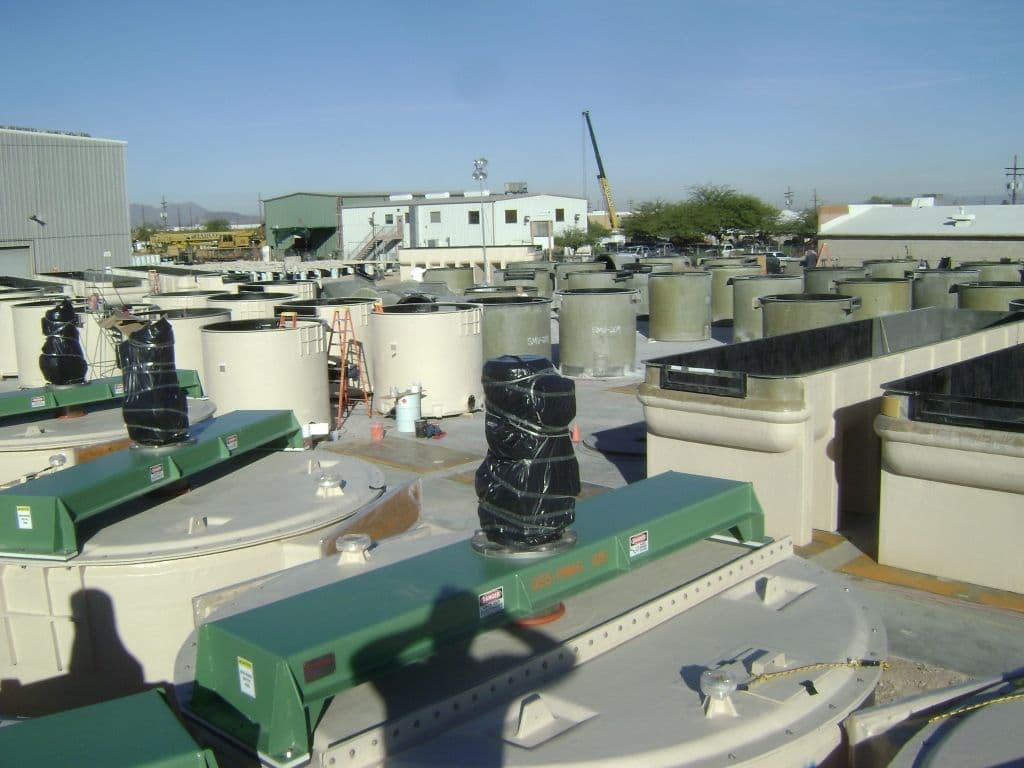

Overhead View — Mixer Drives

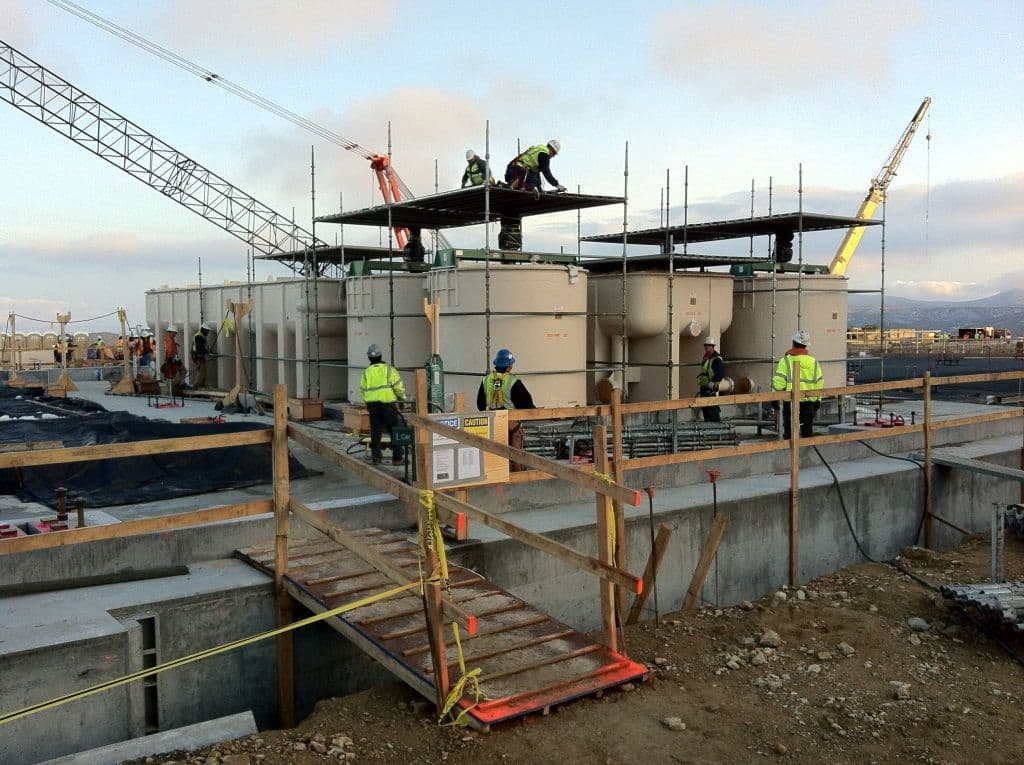

On-Site Installation

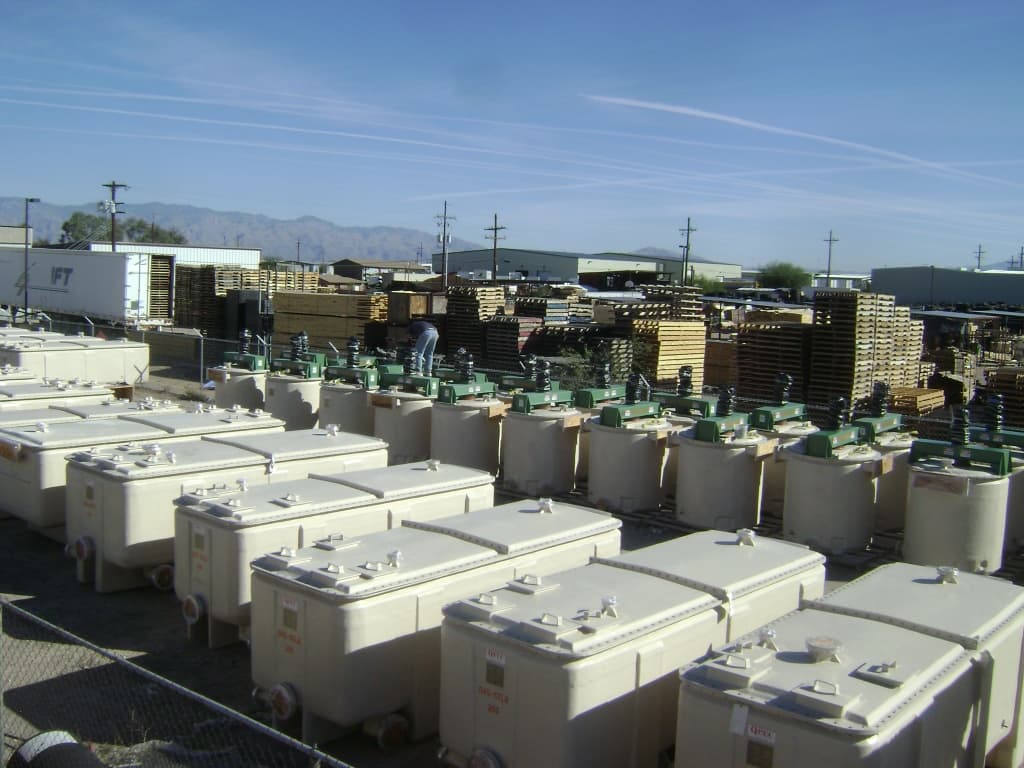

Manufacturing — Mixer Assembly

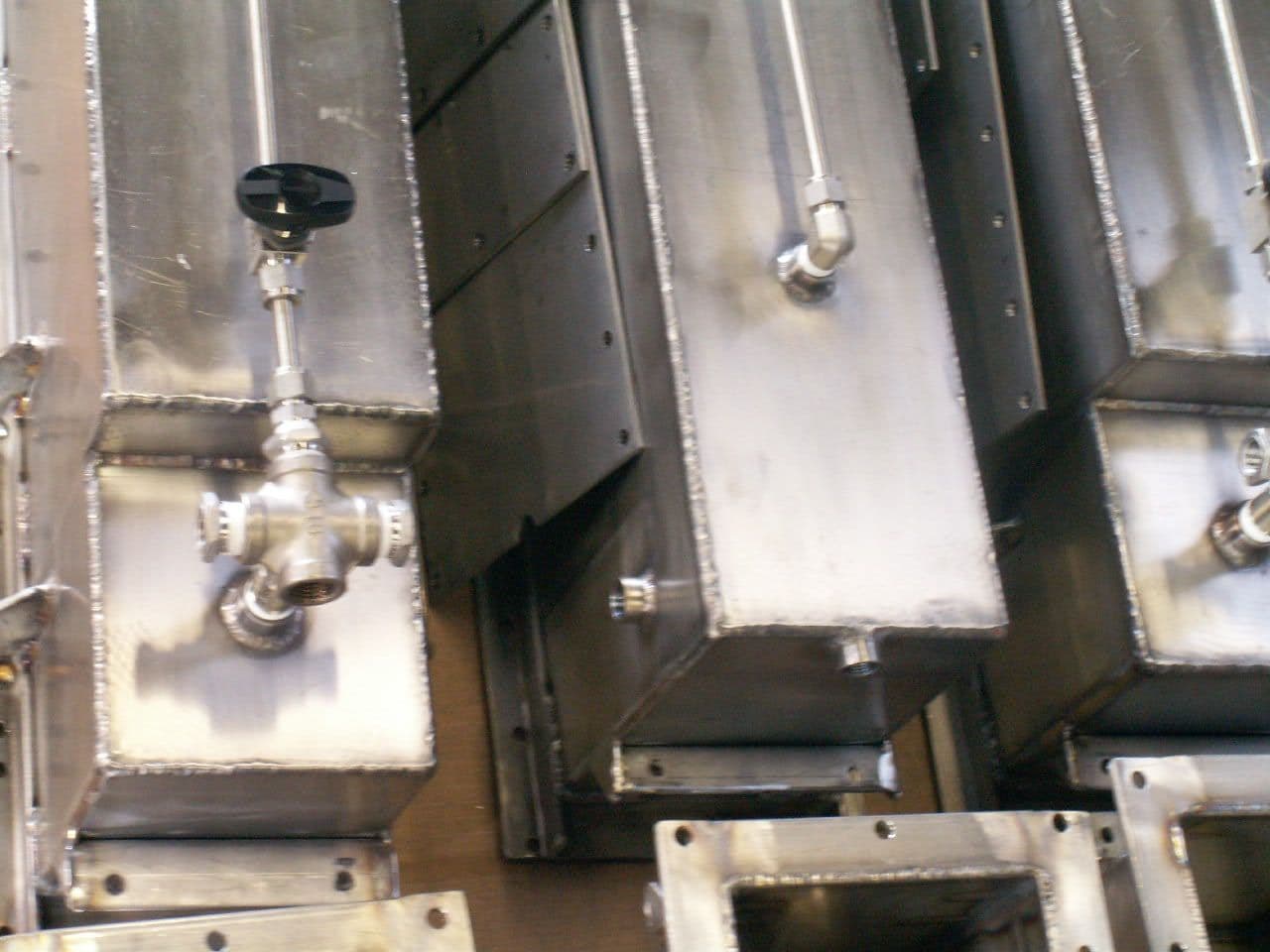

316L Stainless Steel Settlers

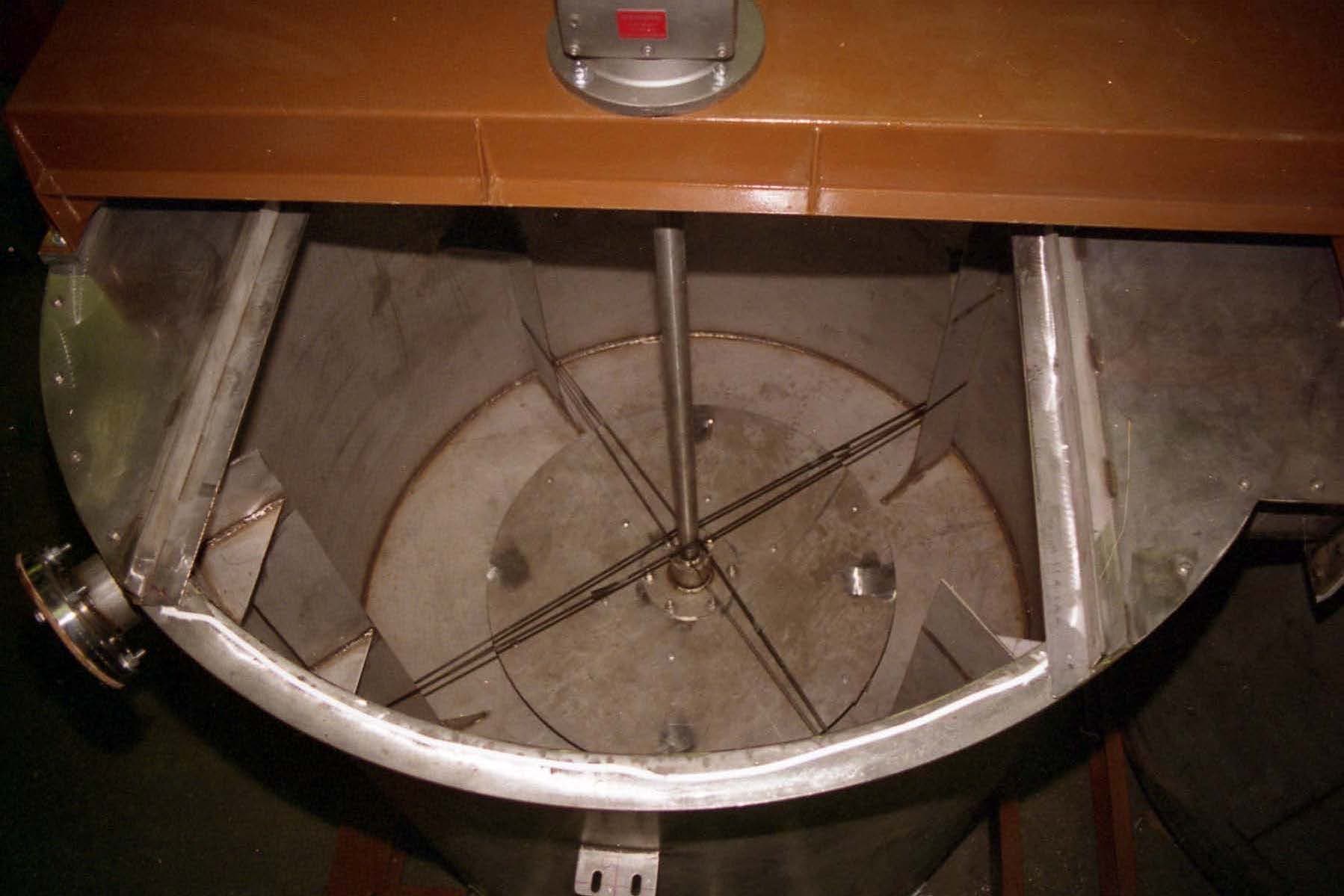

Mixer Impeller Detail
Turnkey Solutions

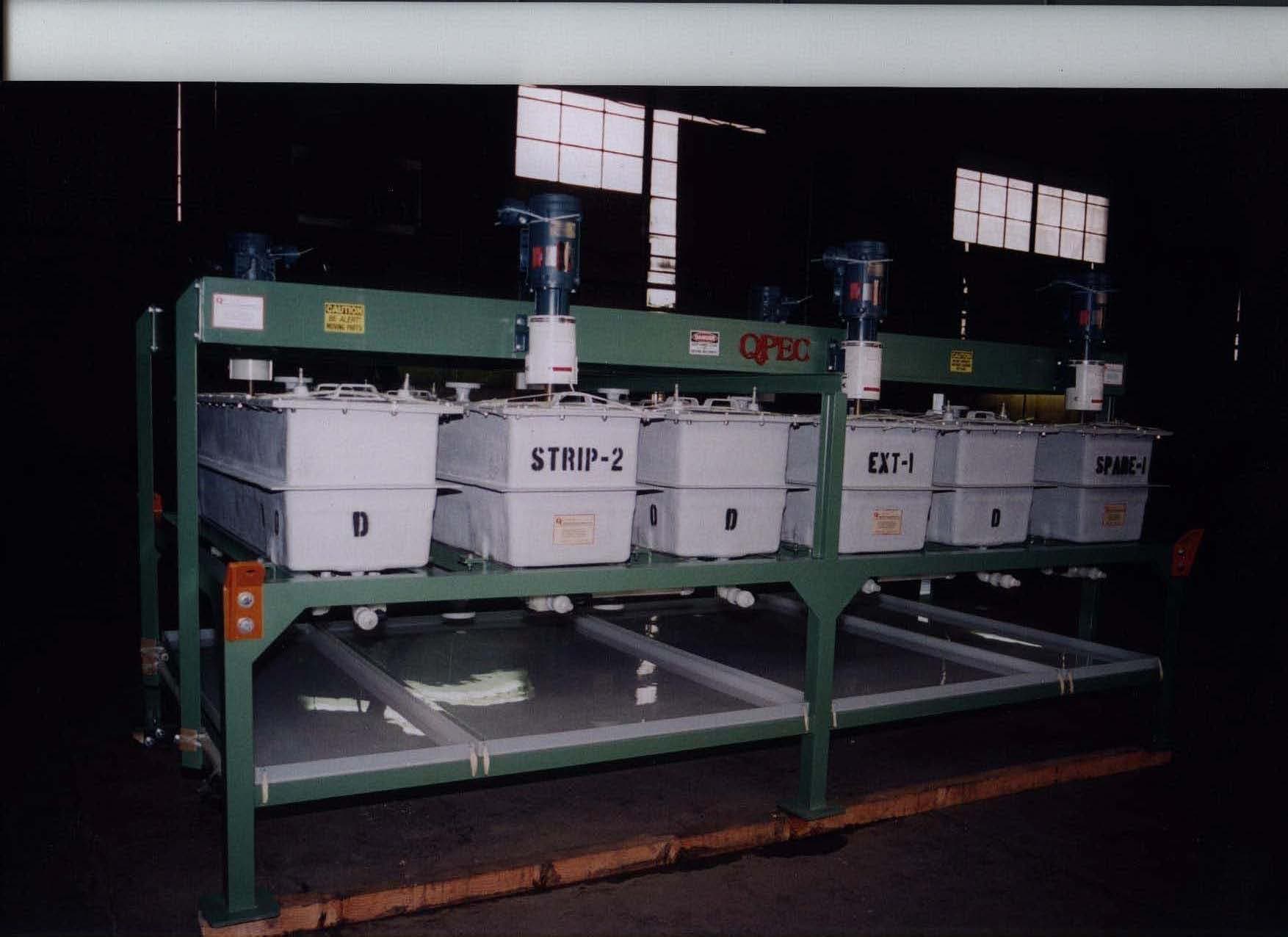

Fully Integrated Pilot Plant Systems

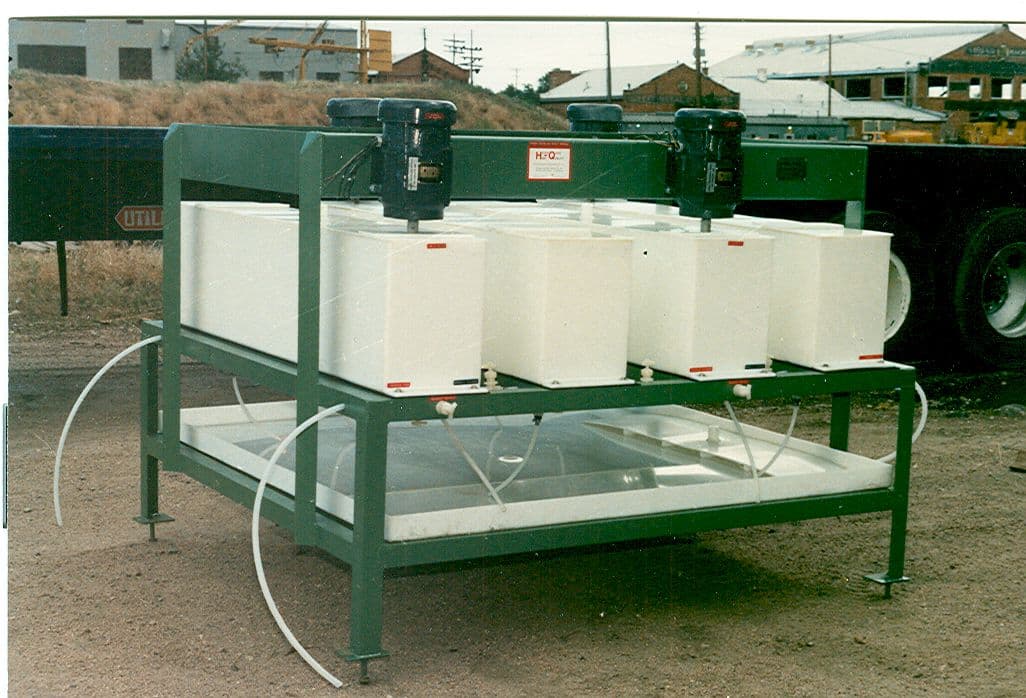

Our pilot plant units are fully integrated package systems. They include all interstage piping and recycle provisions, mounted on a common structural steel frame.
Each comes equipped with explosion-proof electric drive motors and VFD speed controls (shipped separately for customer installation).
